[Solved] Newcomer problems with pimatic-filter plugin

---

I just started to use pimatic-filter plugin and have several problems. My first filter looks like this:

{
  "stats": [
    "min",
    "max",
    "mean",
    "source"
  ],
  "output": {
    "name": "temperature",
    "expression": "$ESP02.temp"
  },
  "xAttributeOptions": [
    {
      "name": "min",
      "displaySparkline": false
    },
    {
      "name": "max",
      "displaySparkline": false
    },
    {
      "name": "mean",
      "displaySparkline": false
    },
    {
      "name": "source",
      "displaySparkline": false
    },
    {
      "name": "temperature",
      "displaySparkline": false
    }
  ],
  "id": "esp02tempfiltered",
  "name": "ESP02TempFiltered",
  "class": "SimpleTruncatedMeanFilter"
}

Firstly the filtered temperature does not appear in the variables list of the UI (Whereas all stats attributes are present, like $esptempfiltered.min, $esptempfiltered.source etc.)

Secondly the filtered temperature can not be referred in rules.

Further it is named with leading $ ($temperature and not temperature) on the graph page.

@Heizelmann said in Newcomer problems with pimatic-filter plugin:

Firstly the filtered temperature does not appear in the variables list of the UI (Whereas all stats attributes are present, like $esptempfiltered.min, $esptempfiltered.source etc.)

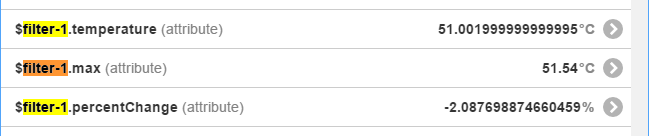

Works for me.

Secondly the filtered temperature can not be referred in rules.

Works for me.

Further it is named with leading $ ($temperature and not temperature) on the graph page.

Yes, that’s strange and it might be a bug. I’ll have a look into this

@mwittig Thanks. I tried it again and after some refreshing and restarting (can not reconstruct in detail) the temperature attribute appears in variables list as well as in rules.

How can I reset the stats attributes without recreating the filter device?

@Heizelmann said in Newcomer problems with pimatic-filter plugin:

How can I reset the stats attributes without recreating the filter device?

You can call the resetStats device action, e.g.

GET http://<HOST>/api/device/filter-1/resetStats

However, note, the display of the filter device does not update, but the variables do. I am going to fix that with the next release.

@Heizelmann said in Newcomer problems with pimatic-filter plugin:

Further it is named with leading $ ($temperature and not temperature) on the graph page.

Apparently, this happens if no “label” is set. I am going to fix this with the next release, by setting a suitable default. You can work-around this by setting the label for the output, e.g. set the label to “temperature”.

EDIT: Caused by a typo in the code. The work-around applies.

@mwittig said in Newcomer problems with pimatic-filter plugin:

You can call the resetStats device action, e.g.
GET http://<HOST>/api/device/filter-1/resetStats

Thanks for the hint. Would be more natural if a rule construct would exist like

When ... then reset filter-1

@Heizelmann said in Newcomer problems with pimatic-filter plugin:

Thanks for the hint. Would be more natural if a rule construct would exist like

Agree. I haven’t implemented this yet due to laziness,

@Heizelmann, voilà pimatic-filter@0.9.2
* added reset action provider
* fixed filter default output attribute label
* fixed resetStats did not update display
* excluded ‘src’ attribute from reset

If you like this plugin, please consider ★ starring the project on github.

@mwittig Thanks a lot. I tested it quickly and found that src is not excluded from reset but the filter output. Further the stats values min, max, mean are set to 0. I have a long update interval and if I reset the filter, it might happen that for a long time alk stats values are 0. When an update happens all values are OK. A reset in my opinion should set min, max and mean to the last src.

Some polishing for the graph page: The labels for min, max, mean starts with uppercase letter, the filter output variable as it is named. All attributes are defined lower case.

@mwittig thanks for the quick update. The reset function works as expected now. But when creating/recreating filter device the min value is set to zero even the source value is different.

Further the default value of displaySparline is displayed as false but sparkline is showed.

github issue 12 - reset min value
github issue 13 - hidden sparklines
